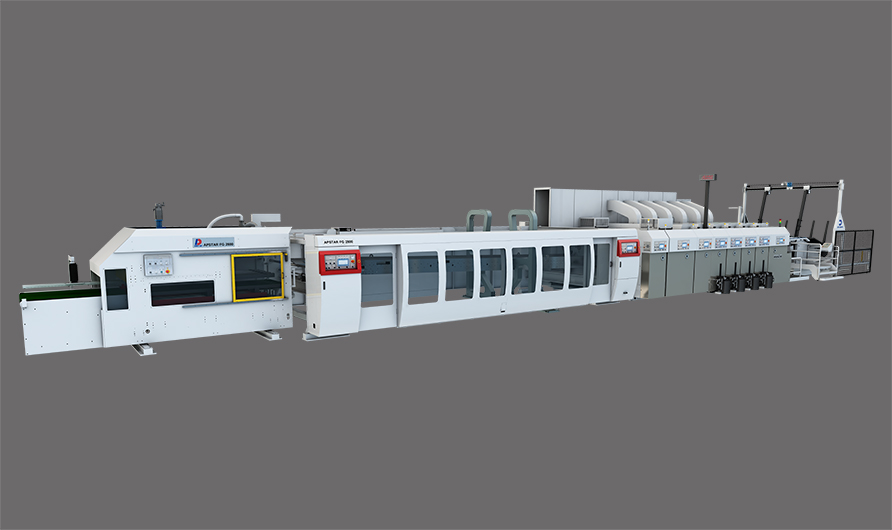

DONGFANG STAR Ⅱ—TOP PRINTING OPEN-CLOSE TYPE FFG INLINE

DONGFANG STAR Ⅱ—TOP PRINTING OPEN-CLOSE TYPE FFG INLINE
MACHINE FEATURES:
Top printing open-close type,vacuum transfer
Suitable for RSC or simple RDC box
Unique design of folding structure to improve box sharping
Servo motor drive for counter ejector to improve counting accuracy
Labour efficiency by only 2-3 workers
  • Super intelligence production management system
  • Multi machines field monitoring productiong capability
  • Ready to connect ERP,information management
  • Automatic stored and recalled orders,quick order change and high efficiency
  • Central control monitoring order preparation,reducing communication and time cost
  • Remote diagnose and intelligent maintenance reminder,reducing down-time and maintenance cost
  • Feeder unit
  • Extended anti-static dust removing system,reduce the down-time for printing plate cleaning
  • Varialbe frequency drive control of vacuum suction and pressure to match different size and wrap paperboard
  • Optional:Servo drive lead edge feeding system
  • Optional:Non-crush lead edge feeder(servo drive)
  • Printer unit
  • Vacuum wheel paperboard transfer
  • Quick-lock or Mattews plate mounting system
  • Rubber inking or doctor(single or chamber)blade inking system
  • Auto washing system including wash-while-run capacity for fast and efficient ink cleanup
  • Auto register reset system after printing plate are cleaned
  • Single shaft double creaser slotler unti
  • The slotting boss move along linear guides driven by lead screw for more flexible andprecise movement
  • The structure of glue tab knives can cut 3-layer or 5-layer without adjustment
  • Optional:Independent creasing unit
  • Die cutter unit
  • Independent motor drive for anvil cover cylinder,side to side oscillation of anvil cylinder 50mm
  • Anvil trimming device keep surface of anvil cover flat and smooth
  • Optional:Independent servo motor drive for wood die cylinder
  • Optional:Quick die mounting system reduce the changing time of wooden die
  • Folder unit
  • New Kiss-touch plastic guide wheel with spring design suitable for both 3 or 5 layer paperboard
  • Extended vacuum suction belt with non-crush wheels for more stable paperboard transfer
  • Unique design of shaping and folding structuire to effectively improve the gluing box quality
  • Counter Ejector
  • Top lading collector
  • Max 25 bundles per minute
  • Independent servo motor drive to ensure precisel control the numbers of each carton bundle
  • The carton bundle pressing system make the bundles transfer smoothly
